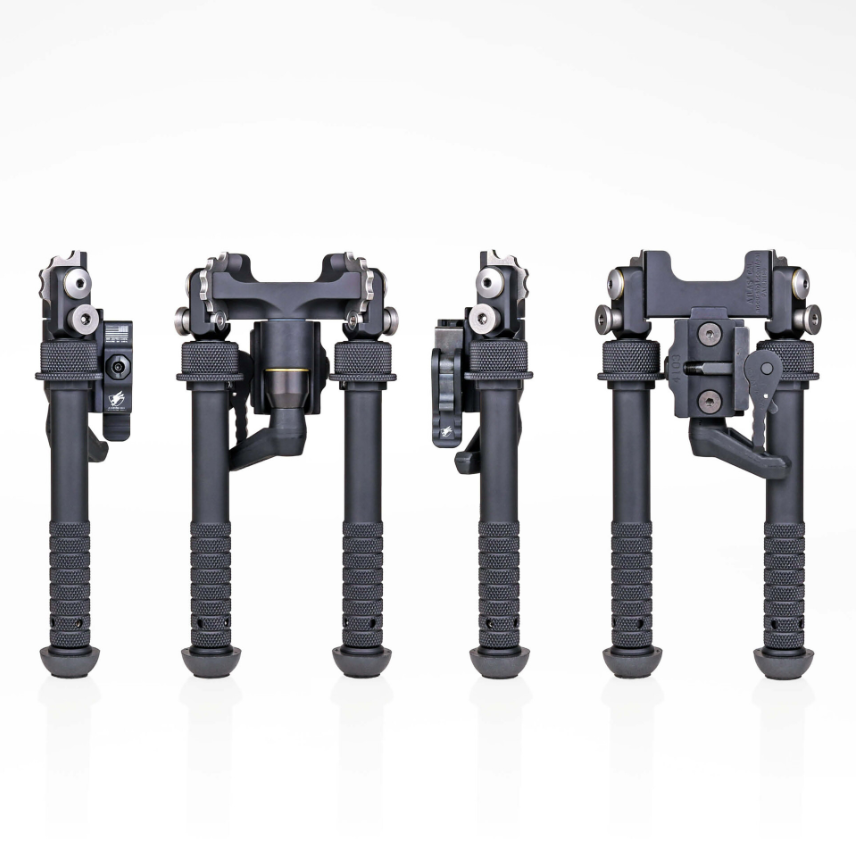

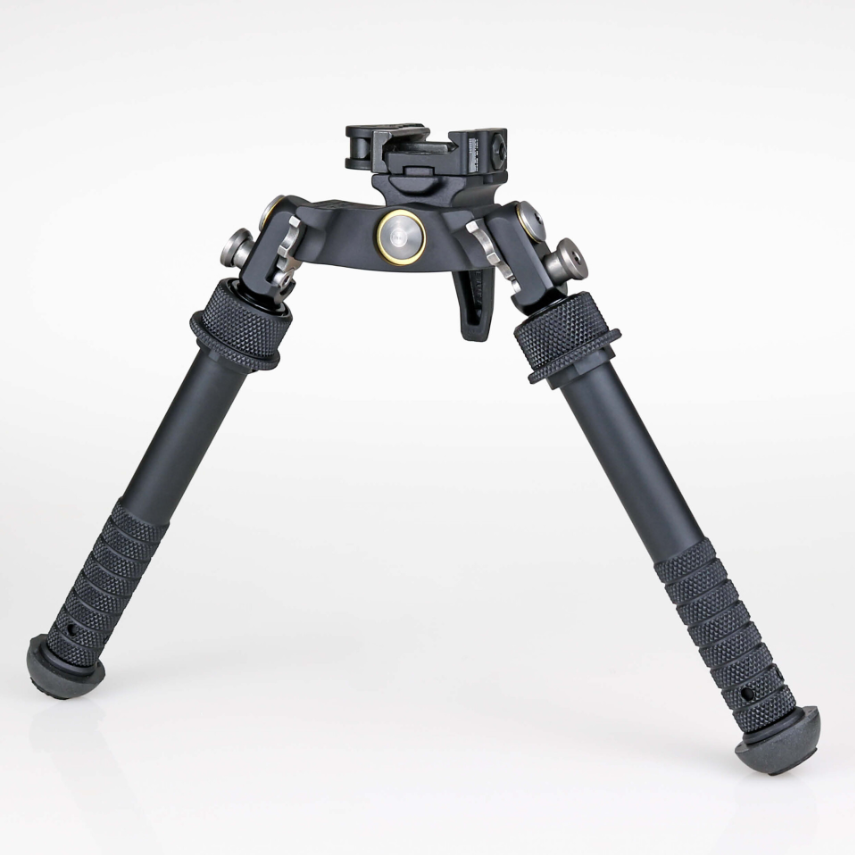

About the CAL Series: Fulfilling requests for an Atlas without the ability to Cant prompted creation of the CAL (Cant And Loc) Atlas® Bipod. It delivers the same novel Atlas feature of five independent leg positions – including the patented 45° leg position – but without the Pan function to ensure the bore stays perpendicular to the bipod legs. Features 63º of adjustable, preloaded Cant and a wide footprint. Made in the USA.

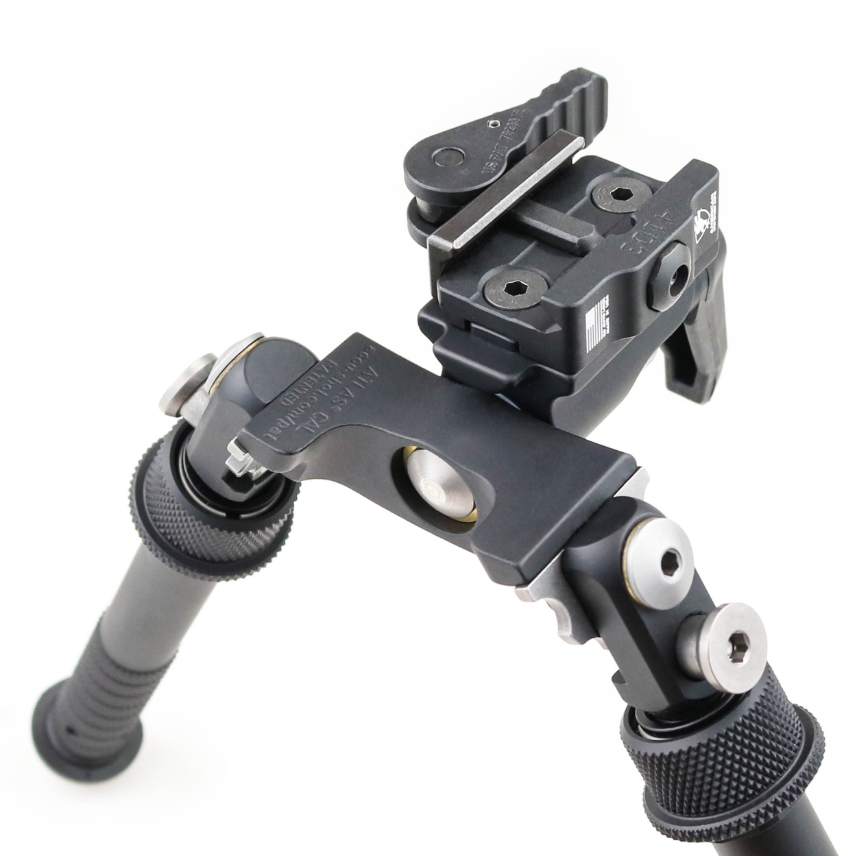

The BT65-LW17 model Atlas Bipod is part of our CAL Series. It mounts directly to any Picatinny rail using the included ADM-170-S lever mount. This mount allows for quick attachment to and detachment from firearms with Picatinny Rail, and is adjustable to fit the width of in spec and out of spec Picatinny Rails without the use of tools.

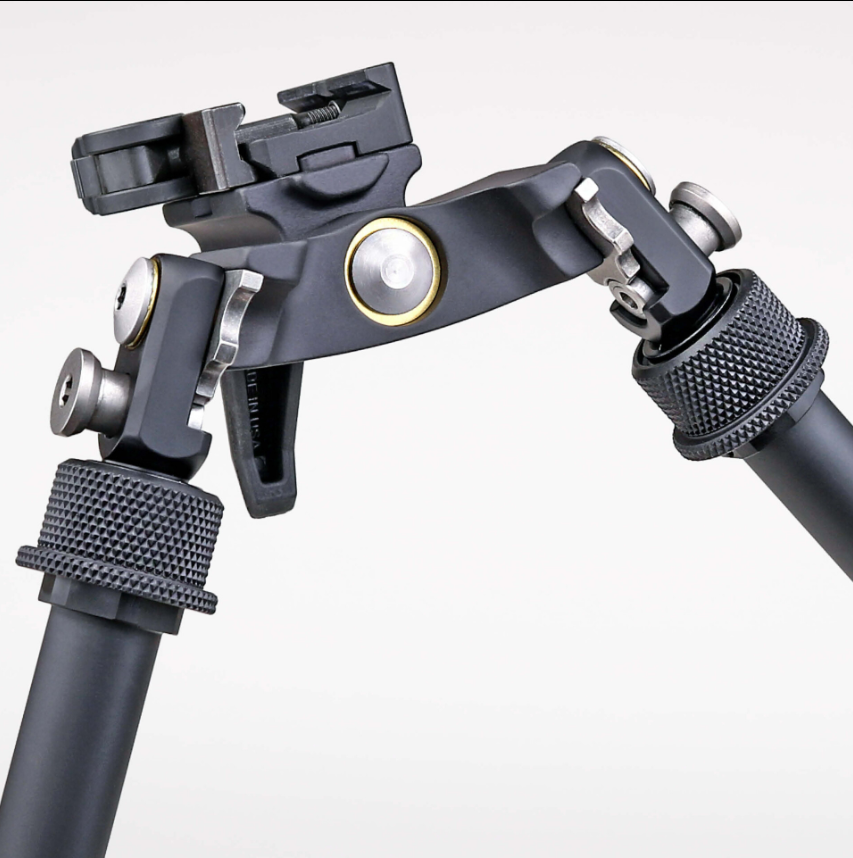

Adjustable, preloaded Cant with additional tension lever made possible using original KMW Pod-Loc® (instructions below).
NSN 1005-01-703-0644
The BT65-LW17 is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Available in black only.
- Height Range: 5.1 – 9.4″ (6.6” at 90°)
- Preloaded Cant: 63 degrees
- Position Button 0.5″ diameter
- 5 leg positions: 0, 45, 90, 135 & 180 degrees
- Non-Rotating Legs: outer leg does not rotate around inner leg
- Larger, stronger inner legs
- Weight: 14.6 ounces
- Footprint: 9–12.5″
